PTFE membranes PM2.5 for particle analysis in air

The CHM® PM 2.5 membranes are made from PTFE material and each membrane is sequentially numbered with chemically resistant polypropylene support ring, These PM 2.5 PTFE membranes are chemically resistant with low chemical background interference (e.g, combustion particles, organic compounds and metals) allowing to carry out sensitive determinations. Accurate gravimetric determination can be allowed thanks to their low tare mass. Air quality, along with water quality, is one of the most important parameters that we need to constantly assess. One of the most accurate and critical points of air analysis is the analysis of suspended particles below 2.5 μm for the possible harmful effects they may have on the human body. Thanks to their size these particles can penetrate the deeper parts of the lungs being potentially extremely dangerous. Unit-specific numbering helps record the results of subsequent analysis using ICP-MS (coupled plasma mass spectrometry) or XRF (X-ray Fluorescence).

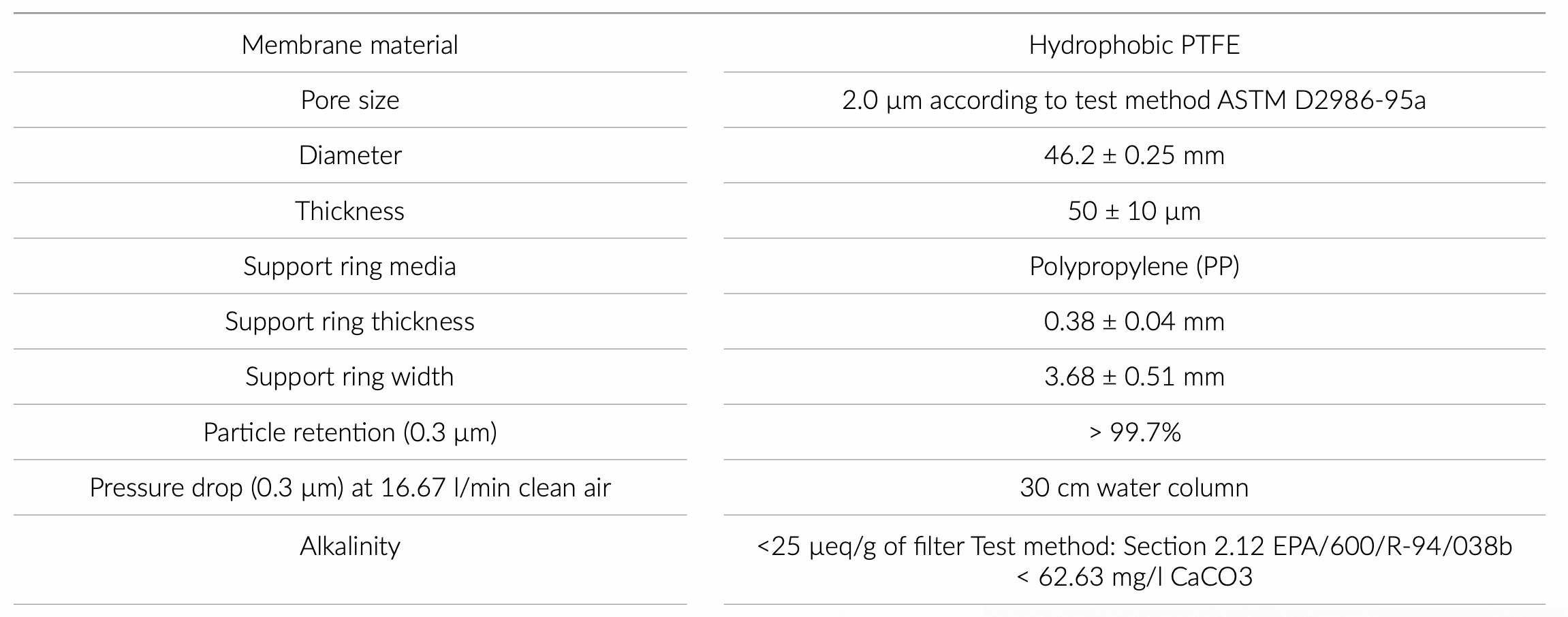

Technical specifications


Specifications according to standard EPA40 CFR part 50, appendix L

Numeric code specified in each membrane

No particle detachment

Excellent chemical stability

High sensitivity and extremely low in extractables

Designed for use in robotic air analysers


The following industries should be monitoring particulate matter Mines and quarries

Cement factories

Construction/demolition sites



Technical specifications

Download TDS

Shop online

Ref. Description Qty/Box Price
MTF200046K-PM ø 46.2 mm, Pore 2.0 µm, For the analys ... 50 368.10 €
1 ud.

If you have any questions about our products, please do not hesitate to contact us.
