Sterile disposable vacuum filtration units

CHM® VacFILSeries are single-use vacuum filtration units for sterile and vacuum filtration, mainly used for filtering and storing cell culture, tissue culture media, biological fluids and other aqueous solutions. The units contain a high quality membranes (PES and Hydrophilic PVDF) and combine highest flow-rates and throughput with extremely low protein binding and extractable. The system consists of a polystyrene receiver bottle and filter funnel with different membrane filter choices. Also includes a polyethylene neck adaptor with hose connector for vacuum filtration of your valuable laboratory samples.

Features

Technical specifications

Features

Available in 2 different membranes PES and Hydrophilic PVDF

Two membrane pore sizes 0,2 Î¼m and 0,45 Î¼m

Three funnel volumes 250, 500 and 1000 ml

Three receiver bottle volumes 250, 500 and 1000 ml

Membrane diameter 50 and 90 mm

Light weight and heavy wall construction

Non-pyrogenic

Detergent-free Sterile, individually packed

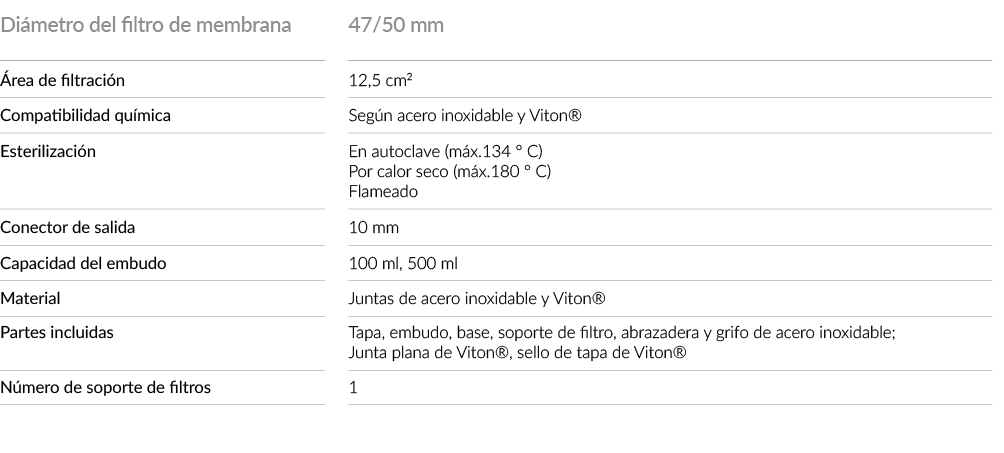

Technical specifications

Search by Application

Shop online

Ref.	Description	Qty/Box	Price
VF02250PE022T-S	PES, Funnel capacity 250 ml, Receiver Ca ... × PES, Funnel capacity 250 ml, Receiver Capacity 250 ml, Pore size 0.2 µm, ø 50 mm	12	169.10 €	Add 1 ud.
VF02250PE045T-S	PVDF, Funnel capacity 250 ml, Receiver C ... × PVDF, Funnel capacity 250 ml, Receiver Capacity 250 ml, Pore size 0.2 µm, ø 50 mm	12	169.10 €	Add 1 ud.
VF02250PV022T-S	PES, Funnel capacity 250 ml, Receiver Ca ... × PES, Funnel capacity 250 ml, Receiver Capacity 250 ml, Pore size 0.45 µm, ø 50 mm	12	229.50 €	Add 1 ud.
VF02250PV045T-S	PVDF, Funnel capacity 250 ml, Receiver C ... × PVDF, Funnel capacity 250 ml, Receiver Capacity 250 ml, Pore size 0.45 µm, ø 50 mm	12	229.50 €	Add 1 ud.
VF05500PE022T-S	PES, Funnel capacity 500 ml, Receiver Ca ... × PES, Funnel capacity 500 ml, Receiver Capacity 500 ml, Pore size 0.2 µm, ø 90 mm	12	169.10 €	Add 1 ud.
VF05500PE045T-S	PVDF, Funnel capacity 500 ml, Receiver C ... × PVDF, Funnel capacity 500 ml, Receiver Capacity 500 ml, Pore size 0.2 µm, ø 90 mm	12	169.10 €	Add 1 ud.
VF05500PV022T-S	PES, Funnel capacity 500 ml, Receiver Ca ... × PES, Funnel capacity 500 ml, Receiver Capacity 500 ml, Pore size 0.45 µm, ø 90 mm	12	229.50 €	Add 1 ud.
VF05500PV045T-S	PVDF, Funnel capacity 500 ml, Receiver C ... × PVDF, Funnel capacity 500 ml, Receiver Capacity 500 ml, Pore size 0.45 µm, ø 90 mm	12	229.50 €	Add 1 ud.
VF1000PE022T-S	PES, Funnel capacity 1000 ml, Receiver C ... × PES, Funnel capacity 1000 ml, Receiver Capacity 1000 ml, Pore size 0.2 µm, ø 50 mm	12	169.10 €	Add 1 ud.
VF1000PE045T-S	PVDF, Funnel capacity 1000 ml, Receiver ... × PVDF, Funnel capacity 1000 ml, Receiver Capacity 1000 ml, Pore size 0.2 µm, ø 50 mm	12	169.10 €	Add 1 ud.
VF1000PV022T-S	PES, Funnel capacity 1000 ml, Receiver C ... × PES, Funnel capacity 1000 ml, Receiver Capacity 1000 ml, Pore size 0.45 µm, ø 50 mm	12	229.50 €	Add 1 ud.
VF1000PV045T-S	PVDF, Funnel capacity 1000 ml, Receiver ... × PVDF, Funnel capacity 1000 ml, Receiver Capacity 1000 ml, Pore size 0.45 µm, ø 50 mm	12	229.50 €	Add 1 ud.

If you have any questions about our products, please do not hesitate to contact us.
