F5990 GRADE

These quartz extraction thimbles are ideal to work with high temperaures (up to 900ºC), and indicated for hugh purity requeriments.

Features

Applications

Technical specifications

Features

Manufactured in high-purity quartz microfiber filters (SiO2) free of binding elements or additives

High loading capacity

High retention of very small particles

High air permeability

Good stability in high temperature

Maximum working temperature 900ºC

Tolerances for F5990 micro-quartz thimbles Internal diameter +0-3mm; Thimble height ±1mm; Wall thickness 2 0,5mm

Applications

Gas emission controls for industrial chimneys

Gravimetric testing for dust in hot gases

Determination of environmental pollutants

Extraction in highly concentrated acid or alkaline solutions

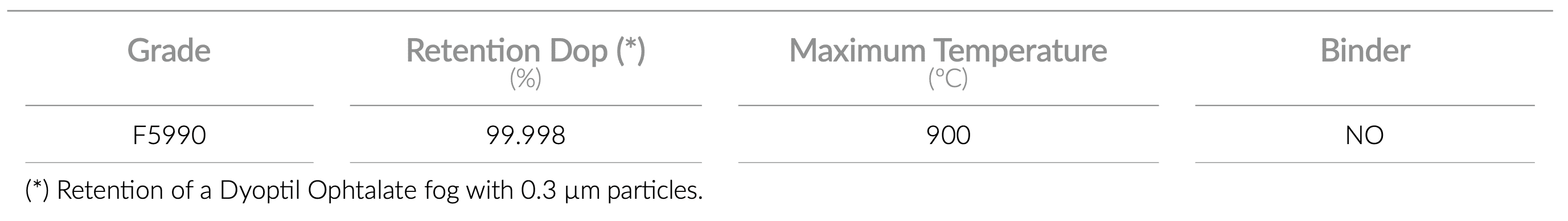

Technical specifications

Ref.	Description	Qty/Box	Price
F5990-19090	Quartz microfiber thimble, 19x90 mm	25	496.50 €	Add 1 ud.
F5990-22065	Quartz microfiber thimble, 22x65 mm	25	530.00 €	Add 1 ud.
F5990-22090	Quartz microfiber thimble, 22x90 mm	25	586.50 €	Add 1 ud.
F5990-25080	Quartz microfiber thimble, 25x80 mm	25	633.90 €	Add 1 ud.
F5990-25100	Quartz microfiber thimble, 25x100 mm	25	658.00 €	Add 1 ud.
F5990-30100	Quartz microfiber thimble, 30x100 mm	25	829.30 €	Add 1 ud.
F5990-35150	Quartz microfiber thimble, 35x150 mm	25	829.30 €	Add 1 ud.
F5990-43123	Quartz microfiber thimble, 43x123 mm	25	918.20 €	Add 1 ud.

If you have any questions about our products, please do not hesitate to contact us.
