F5900 GRADE

These glass fiber extraction thimbles are suitable when solvents that are incompatible with cellulose thimbles are present, as well as when the working temperature higher than 120ºC

Features

Applications

Technical specifications

Features

Manufactured in 100% pure borosilicate fibers without binders

High loading capacity

High retention of very small particles

High air permeability

Good stability in high temperature, maximum working temperature 500ºC

Tolerances for F5900 glass microfiber thimbles Internal diameter +1-3mm; Thimble height ±1mm; Wall thickness 2 ±0,5mm

Applications

Extraction of solvents which are not compatible with cellulose cotton linter

Gas emission controls for industrial chimneys

Gravimetric testing for dust in hot gases

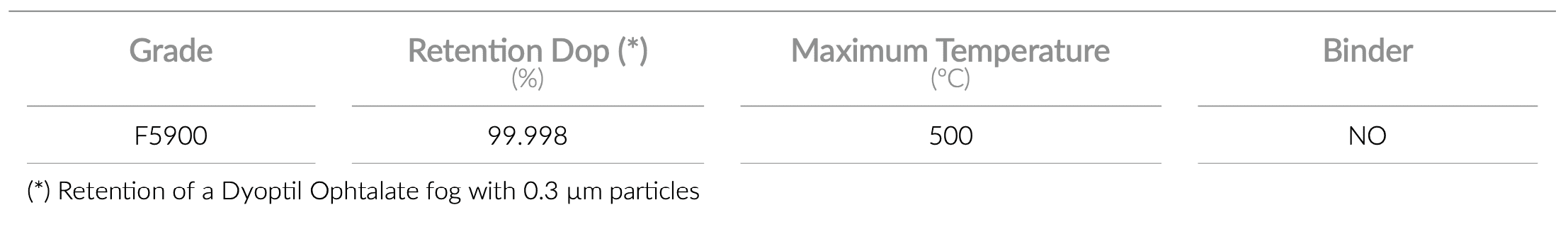

Technical specifications

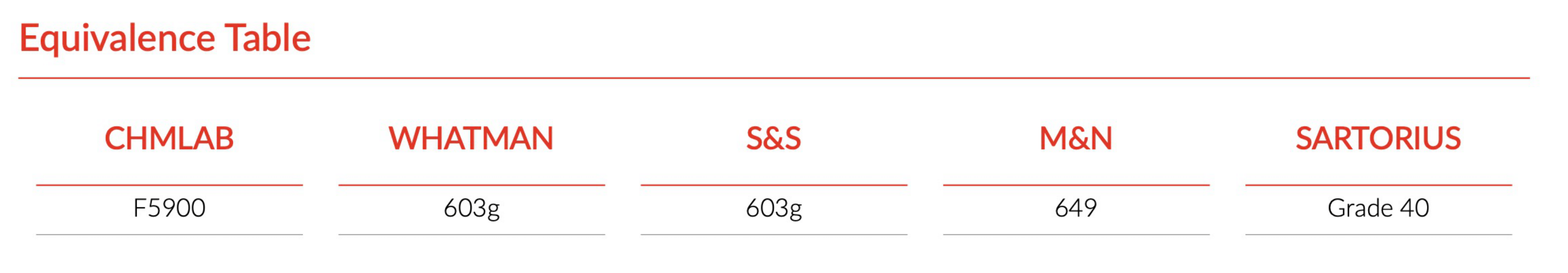

Equivalence Table

Search by Application

Shop online

Ref.	Description	Qty/Box	Price
F5900-19090	Glass microfiber thimble, 19x90 mm	25	213.50 €	Add 1 ud.
F5900-22080	Glass microfiber thimble, 22x80 mm	25	213.50 €	Add 1 ud.
F5900-25080	Glass microfiber thimble, 25x80 mm	25	213.50 €	Add 1 ud.
F5900-25100	Glass microfiber thimble, 25x100 mm	25	213.50 €	Add 1 ud.
F5900-26060	Glass microfiber thimble, 26x60 mm	25	213.50 €	Add 1 ud.
F5900-30080	Glass microfiber thimble, 30x80 mm	25	245.80 €	Add 1 ud.
F5900-30100	Glass microfiber thimble, 30x100 mm	25	245.80 €	Add 1 ud.
F5900-33080	Glass microfiber thimble, 33x80 mm	25	325.80 €	Add 1 ud.
F5900-33094	Glass microfiber thimble, 33x94 mm	25	325.80 €	Add 1 ud.
F5900-33100	Glass microfiber thimble, 33x100 mm	25	325.80 €	Add 1 ud.
F5900-35150	Glass microfiber thimble, 35x150 mm	25	325.80 €	Add 1 ud.
F5900-43123	Glass microfiber thimble, 43x123 mm	25	400.50 €	Add 1 ud.
F5900-25180	Glass microfiber thimble, 52x180 mm	25	390.00 €	Add 1 ud.
F5900-58180	Glass microfiber thimble, 58x180 mm	25	400.50 €	Add 1 ud.

If you have any questions about our products, please do not hesitate to contact us.
