Filtration
Extraction thimbles
Cellulose extraction thimbles
F5800 Standard Thickness (1 - 1.5 mm)
Features
Applications
Technical specifications
Features
Manufactured in high-alpha cellulose cotton linters
Strong mechanical structure and retentivity
Maximum working temperature 120ºC
Tolerances according to DIN 12449 Internal diameter +0/-3mm; Thimble height ±1mm; Wall thickness ±0,5mm; Ash content <0,1%
Applications
Fat extraction in foodstuffs, paints and varnishes Extraction of polymers
Determination of environmental pollutants
They are usually used in extractors of the “Soxhlet”, “Tecator” or similar types, in order to collect solid material from which components must be separated out by dissolving in a suitable solvent
The thimbles size selection should be done carefully to fit extractors correctly

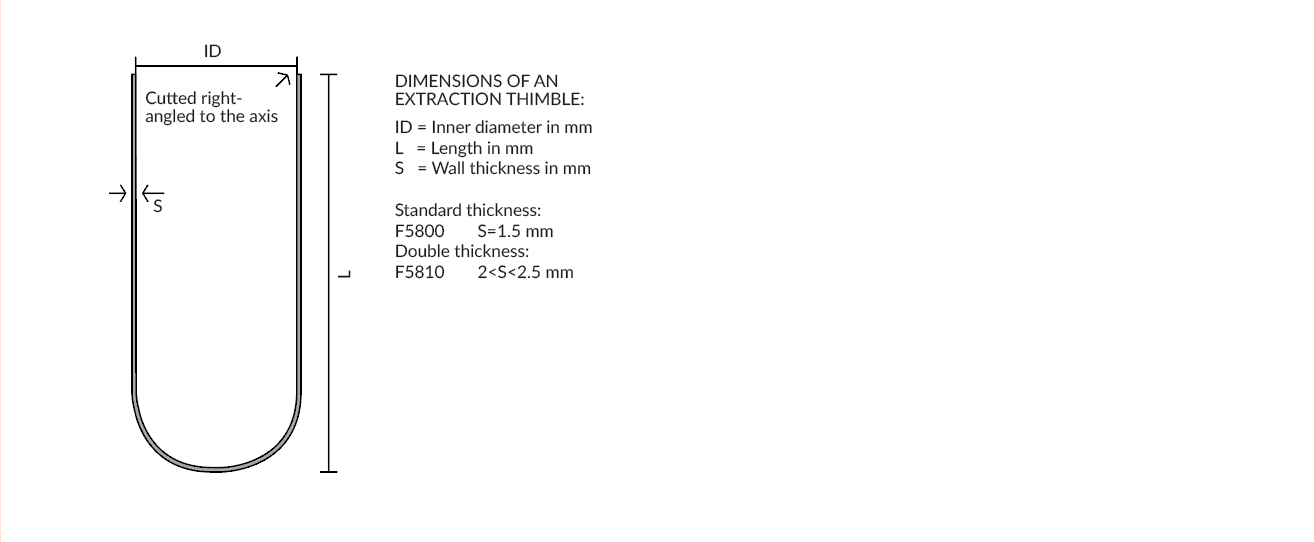

The references sizes are internal diameter and the length in mm (an extra allowance for wall thickness should be added when selecting external diameters)
| Ref. | Description | Qty/Box | Price | |
|---|---|---|---|---|
| F5800-10050 | Cellulose extraction thimble, 10x50 mm | 25 | 71.00 € |
Add
1 ud.
|
| F5800-16100 | Cellulose extraction thimble, 16x100 mm | 25 | 71.00 € |
Add
1 ud.
|
| F5800-19090 | Cellulose extraction thimble, 19x90 mm | 25 | 71.00 € |
Add
1 ud.
|
| F5800-20080 | Cellulose extraction thimble, 20x80 mm | 25 | 71.00 € |
Add
1 ud.
|
| F5800-22060 | Cellulose extraction thimble, 22x60 mm | 25 | 71.00 € |
Add
1 ud.
|
| F5800-22065 | Cellulose extraction thimble, 22x65 mm | 25 | 71.00 € |
Add
1 ud.
|
| F5800-22080 | Cellulose extraction thimble, 22x80* mm | 25 | 71.00 € |
Add
1 ud.
|
| F5800-22090 | Cellulose extraction thimble, 22x90 mm | 25 | 71.00 € |
Add
1 ud.
|
| F5800-22100 | Cellulose extraction thimble, 22x100 mm | 25 | 71.00 € |
Add
1 ud.
|
| F5800-25060 | Cellulose extraction thimble, 25x60 mm | 25 | 71.00 € |
Add
1 ud.
|
| F5800-25080 | Cellulose extraction thimble, 25x80 mm | 25 | 71.00 € |
Add
1 ud.
|
| F5800-25100 | Cellulose extraction thimble, 25x100 mm | 25 | 71.00 € |
Add
1 ud.
|
| F5800-26060 | Cellulose extraction thimble, 26x60 mm | 25 | 71.00 € |
Add
1 ud.
|
| F5800-26060T | Cellulose extraction thimble, 26x60T mm | 25 | 73.50 € |
Add
1 ud.
|
| F5800-27080 | Cellulose extraction thimble, 27x80 mm | 25 | 71.00 € |
Add
1 ud.
|
| F5800-27100 | Cellulose extraction thimble, 27x100 mm | 25 | 71.00 € |
Add
1 ud.
|
| F5800-28022 | Cellulose extraction thimble, 28x22 mm | 25 | 71.00 € |
Add
1 ud.
|
| F5800-28100 | Cellulose extraction thimble, 28x100 mm | 25 | 71.00 € |
Add
1 ud.
|
| F5800-30077 | Cellulose extraction thimble, 30x77 mm | 25 | 73.50 € |
Add
1 ud.
|
| F5800-30080 | Cellulose extraction thimble, 30x80 mm | 25 | 73.50 € |
Add
1 ud.
|
| F5800-30100 | Cellulose extraction thimble, 30x100 mm | 25 | 73.50 € |
Add
1 ud.
|
| F5800-33080 | Cellulose extraction thimble, 33x80 mm | 25 | 80.50 € |
Add
1 ud.
|
| F5800-33094 | Cellulose extraction thimble, 33x94 mm | 25 | 80.50 € |
Add
1 ud.
|
| F5800-33100 | Cellulose extraction thimble, 33x100 mm | 25 | 80.50 € |
Add
1 ud.
|
| F5800-33118 | Cellulose extraction thimble, 33x118 mm | 25 | 80.50 € |
Add
1 ud.
|
| F5800-35050 | Cellulose extraction thimble, 35x50 mm | 25 | 80.50 € |
Add
1 ud.
|
| F5800-35080 | Cellulose extraction thimble, 35x80 mm | 25 | 80.50 € |
Add
1 ud.
|
| F5800-35100 | Cellulose extraction thimble, 35x100 mm | 25 | 80.50 € |
Add
1 ud.
|
| F5800-35150 | Cellulose extraction thimble, 35x150 mm | 25 | 80.50 € |
Add
1 ud.
|
| F5800-40100 | Cellulose extraction thimble, 40x100 mm | 25 | 97.50 € |
Add
1 ud.
|
| F5800-40123 | Cellulose extraction thimble, 40x123 mm | 25 | 97.50 € |
Add
1 ud.
|
| F5800-48125 | Cellulose extraction thimble, 48x125 mm | 25 | 97.50 € |
Add
1 ud.
|
| F5800-50160 | Cellulose extraction thimble, 50x160 mm | 25 | 110.25 € |
Add
1 ud.
|
| F5800-52180 | Cellulose extraction thimble, 52x180 mm | 25 | 110.25 € |
Add
1 ud.
|
| F5800-53145 | Cellulose extraction thimble, 53x145 mm | 25 | 110.25 € |
Add
1 ud.
|
| F5800-58180 | Cellulose extraction thimble, 58x180 mm | 25 | 144.00 € |
Add
1 ud.
|
| F5800-60080 | Cellulose extraction thimble, 60x80 mm | 25 | 144.00 € |
Add
1 ud.
|
| F5800-60120 | Cellulose extraction thimble, 60x120 mm | 25 | 144.00 € |
Add
1 ud.
|
| F5800-75160 | Cellulose extraction thimble, 75x160 mm | 25 | 202.20 € |
Add
1 ud.
|
| F5800-90180 | Cellulose extraction thimble, 90x180 mm | 25 | 221.55 € |
Add
1 ud.
|
If you have any questions about our products, please do not hesitate to contact us.
